Lifting Double Jacketed 10L Glass Reactor
Product features and advantages:
The design concept of industrial reaction system,the product has added distillation function on the basis of single reaction synthesis, and has the ability to distill the material after the reaction, and remove low-boiling substances in the material, such as solvent, water, etc.
In the whole set, the connection of each component adopts flange ball mouth or flat flange mouth, and the gasket material is PTFE. The design of the whole system has better air tightness, and it is easy to install/disassemble and not easy to be damaged.
The overall frame adopts a movable integrated lfting design, which has a compact and beautiful appearance. The surface of the frame is treated with anti-corrosion spray. During the cleaning process of the reactor body, the kettle body can be easily lifted and lowered by rotating the handle.
The kettle body can be easily rotated, all the connecting parts are assembled, and the kettle body is easy to disassemble and clean in the later stage.
This new design greatly solves the problems of compact space and cumbersome operation for customers, and can be used in a fume hood.

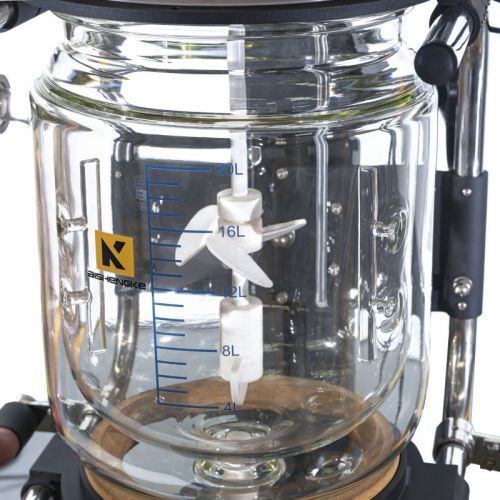

1. The glass bafle is added inside the reactor body, and the baffle design can be added to the jacket to ensure that the kettle body is heated evenly, improve the heat transfer coefficient of the equipment, and ensure the high precision of temperature control of the reactor.

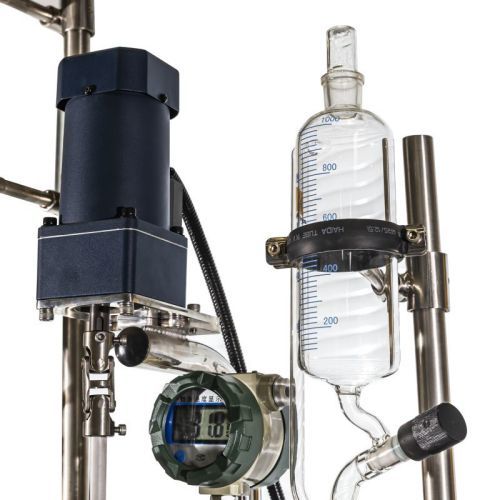

2. The condenser adopts an abdominal wall vertical condenser, which increases the heat exchange area, and adds a low-temperature jacket to keep the cold outside, which increases the processing capacity during the distillation process and reduces the energy loss caused by the environmental impact on the equipment. The heat exchange area can be selected and designed according to the processing capacity and material properties. If the site height is limited, a horizontal condenser structure can be provided.
4. The product collection tank is added, and multiple collection tanks can be added according to customer requirements to meet the convenience of operation.After the reaction distillation is completed, open the bottom valve and discharge the material.

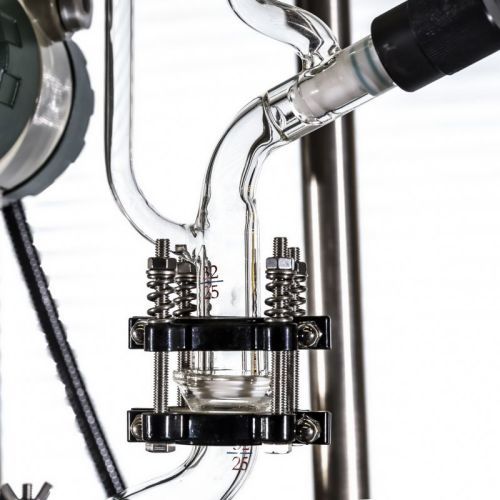

4.The product is designed with a liquid-phase reflux distributor, which is switched by valve operation.During the reaction operation, the valve is closed.During the reaction process, the low-boiling point solvent or catalyst is heated and volatilized and then
5. The collection tank is connected to the return distributor. The connection method adopts the flaring connection. The pipeline is made of PFA material, which has better anti-corrosion performance and intuitive observation. This design replaces hard connections such as glass and reduces the damage of glass instruments during use or disassembly risk
6. The solid feeding is changed to a screw-cap design, which is convenient to open/close. The material is made of PTFE, and a sealing ring is added to the sealing part of the connection with the reaction kettle to improve the air tightness of the system.
We will help customers to solve out problem in each research, most commonly in petrochemical industry, fine chemical industry, biopharmaceuticals, energy and environmental protection industry.
Inform usage scenarios and technical requirements
Confirm the details, modify the plan
Finished product testing, lssue running video and test report
Pay proofing fee
Make Sample PI
Packing and shipping
Guided installation and operation
Satisfied to Sign
Confirm bulk order
Products Can Be Custmized
The volume of the reactor has a wide selection range and can be customized according to customer needs;
The material of the equipment can be customized according to customer requirements, and can provide 304, 316, 316L, titanium alloy, Hastelloy, fluorine lining and other materials for selection.
Aishengke (Jiangsu) Chemical Technology Co., Ltd. was established in 2015. It is an engineering company specializing in providing small-scale research and development, pilot-scale scale-up, electronic-grade materials and fine chemicals industrialization equipment for reaction and separation operations. The company's address is located at No. 109, Liuyanghe Road, Xinbei District, Changzhou, Jiangsu Province. It has an office building of 1500 square meters, a R&D and analysis laboratory of 500 square meters, and an equipment processing and manufacturing plant of 4500 square meters.The company has a senior design team and a processing and manufacturing team, including process development, equipment design, 3D modeling and other designers, glass and stainless steel equipment processing and manufacturing groups, to ensure the high level of process technology development, simulation calculation, mechanical design and manufacturing process.
Why Choose Us
Quality frst is our basic philosophy.
Keep strong transportation capacity and excellent price.
Warranty, parts and labor services.
A complete project team to provide customers with one-stop service.
Replace damaged parts
One year warranty lifetime maintenance
Online technical support
Shot the acceptance video
Submit video within 7 days with broken or missing parts
Reissue parts by express
Yes, we can provide samples. Considering the high value of our products, samples are not free, but we will give you the best price.
We Have Our Own Factory. We Are Experts In Reaction And Separation Process Technology. With Wanhua, Huawei, Smic And Many Other Customers, It Has Won Wide Acclaim In The Industry.
rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment. (If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
