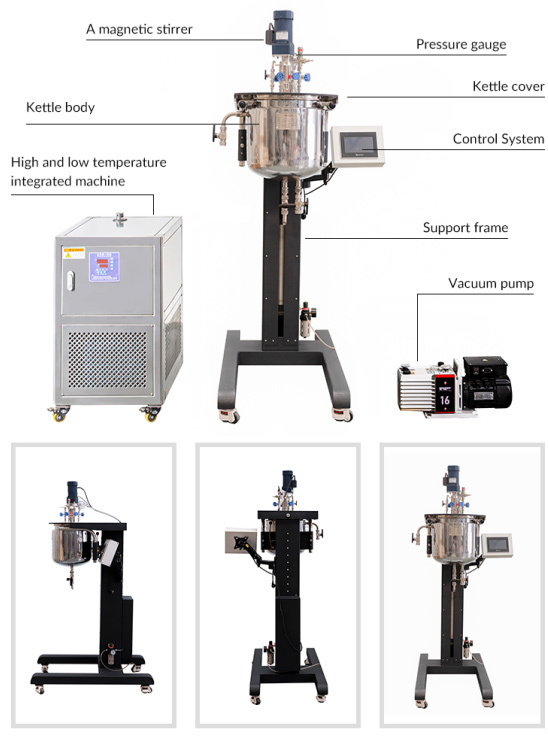

Liftable 20l Jacketed Stainless Steel Reactor
Product Description
Share
Product Introduction
application
The speed-regulating glass reactor is mainly used for the synthesis reaction, distillation and concentration of various materials. We have single, double and triple wall glass reactors. According to some experimental requirements, the reactor can be pumped to a negative pressure state. A constant pressure funnel or regulating valve on the feeding bottle allows you to add material to the container at an even and controlled rate. The condenser helps to recover some of the substances distilled out during the reaction. The jacket can be filled with circulating liquid to heat or cool the internal materials. Three-layer glass reactor, two jackets, the inner jacket is used for circulating liquid, and the outer layer is vacuumed and kept warm.
advantage
● High borosilicate glass has good physical and chemical properties.
● Wide operating temperature range: -80℃ to 200℃.
● It can work under normal pressure and negative pressure, and the vacuum degree can reach 0.095MPa.
● The container can withstand the pressure range of -0.1MPa to 0MPa.
● Teflon (PTFE) and FV rubber plug or drain valve; seals with PTFE covered O-rings.
● Designed with vacuum gauge and temperature display unit.
feature
● Corrosion resistant stainless steel frame.
● Lifting reaction system, easy to operate and clean.
● SUS316 tray can receive and collect fallen material, preventing any pulling.
Parameter
| Model | CR-5 | CR-10 | CR-20 | CR-30 | CR-50 |
| Material | 316L | 316L | 316L | 316L | 316L |
| Effective volume L in the kettle | 5 | 10 | 20 | 30 | 50 |
| Dropping tank volume L (mL) | 500 | 1000 | 2000 | 5000 | 5000 |
| The height of the kettle body | 357 | 376 | 431 | 457 | 541 |
| The inner diameter of the kettle (mm) | 151 | 246 | 300 | 350 | 400 |
| Material Thickness | 4 | 4 | 4 | 4 | 4 |
| Bracket (standard) | Pneumatic lift | Pneumatic lift | Pneumatic lift | Pneumatic lift | Pneumatic lift |
| Stir Form | Overhead Magnetic Stirrer | Overhead Magnetic Stirrer | Overhead Magnetic Stirrer | Overhead Magnetic Stirrer | Overhead Magnetic Stirrer |
| Motor (option) | Brushless DC Motor/Inverter Motor | Brushless DC Motor/Inverter Motor | Brushless DC Motor/Inverter Motor | Brushless DC Motor/Inverter Motor | Brushless DC Motor/Inverter Motor |
| Speed range rpm | 20～1800 | 20～1800 | 20～1800 | 20～1800 | 20～1800 |
| Design temperature (℃) | -25~300℃ | -25~300℃ | -25~300℃ | -25~300℃ | -25~300℃ |
| The pressure in the kettle (bar) can be customized according to customer requirements | -1bar～10bar | -1bar～10bar | -1bar～10bar | -1bar～10bar | -1bar～10bar |
| Jacket pressure (bar) | 5bar | 5bar | 5bar | 5bar | 5bar |
| Sealing material (standard) | PTFE (Viton, FFKM and other materials are optional) | PTFE (Viton, FFKM and other materials are optional) | PTFE (Viton, FFKM and other materials are optional) | PTFE (Viton, FFKM and other materials are optional) | PTFE (Viton, FFKM and other materials are optional) |
| Power | 220V | 220V | 220V | 380V | 380V |
| Dimensions (W×D×H mm) | |||||
| Weight (kg) |
Product Introduction
| Specifications | Design pressure | Design temperature | Texture of material |
| 5L | 0~1.6 MPa | -100~ 300 °C | S316L |
| Mixing paddle included | |||
Application Area
We will help customers to solve out problem in each research, most commonly in petrochemical industry, fine chemical industry, biopharmaceuticals, energy and environmental protection industry.
|
Scientifc Research |
Chemical Engineering |
Pharmaceuticals |
|
Semiconductor |
Medical Science |
New Energy |
Key words:
Order Process
Interesting
lnquiry
Inform usage scenarios and technical requirements
Recommended solution
Confirm the details, modify the plan
Customer confirm
Finished product testing, lssue running video and test report
Customer confirm
Production
Pay proofing fee
Recommended solution
Make Sample PI
Packing and shipping
Customer receipt
Guided installation and operation
Satisfied to Sign
Confirm bulk order
Products Can Be Custmized
The volume of the reactor has a wide selection range and can be customized according to customer needs;
The material of the equipment can be customized according to customer requirements, and can provide 304, 316, 316L, titanium alloy, Hastelloy, fluorine lining and other materials for selection.
