0.1~15kg/h Processing Capacity Customizable Laboratory Molecular Distillation System
Product Description
Share
Product Introduction
How it works:
Short-path distillation (molecular distillation) is a new separation technology that can solve a lot of problems that cannot be solved by conventional distillation technology. Short-path distillation (molecular distillation) is a special liquid-liquid separation technology that can operate under extremely high vacuum. It can separate liquids at temperatures far below their boiling points based on the difference in the mean free path of molecular motion. , especially suitable for the separation of high boiling point, heat sensitivity and easily oxidized systems. Because its distillation temperature is lower than the boiling point of the material, the distillation pressure is low, the heating time is short, and the degree of separation is high, it can greatly reduce the separation technology of high-boiling point materials and protect the characteristics and quality of heat-sensitive materials. This technology is used for the extraction of natural health products, which can get rid of the shackles of chemical treatment methods and truly maintain the natural characteristics.
Products Description
Product name | Molecular Distillation Machine | |||||
Model | ASK-MD60 | ASK-MD80 | ASK-MD100 | ASK-MD150 | ASK-MD200 | ASK-MD230 |
Effective evaporation area | 0.06㎡ | 0.1㎡ | 0.15㎡ | 0.25㎡ | 0.35㎡ | 0.5㎡ |
Vacuum Degree | 0.001mbar | |||||
Barrel diameter | 60mm | 80mm | 100mm | 150mm | 200mm | 230mm |
Dimension(L*W*H) | 1800*650*1900mm | 1900*650*1900mm | 1900*650*2000mm | 2000*650*2000mm | 2100*700*2000mm | 2200*75*2000mm |
Weight | 350kg | 400kg | 420kg | 450kg | 460kg | 480kg |
Constant pressure feeding funnel volume | 0.5L | 1L | 1.5L | 2L | 2L | |
Pre-heater Temperature | Up to 180℃ | |||||
Maximum speed | 400RPM | |||||
Operation Temperature | Up to 200℃ | |||||
Voltage | 220V;50~60hz | |||||
Motor power | 120W | 200W | 200W | 200W | ||
Feeding rate | 0.1-2kg/hr | 0.3-4kg/hr | 0.5-5kg/hr | 1-8kg/hr | 1.5-10kg/hr | 2-15kg/hr |
Internal Condenser Temperature | -20℃-100℃ | |||||
Condensor Receiving flask | 2L | 3L | ||||
Cold trap Receiving flask | 1L | 2L |
Product advantages
1.High vacuum (no leakage in the system)
2.Fast lifting and cooling rate
3.High temperature control accuracy
4.Accurate and adjustable stirring speed
5.High pressure monitoring accuracy
6.Convenient assembly and disassembly
7.Provide process system customized services
8.Fast delivery time
PRODUCT DETAILS
1.Constant Pressure Feeding Funnel
2.Magnetic driving stirring
3.Jacketed glass barrel with internal condenser
4.Two distillate receiving flask(Left:Heavy molecular, Right.light molecular)
5.External condenser
6.Dry ice cold trap
7.Cold trap receiving flask
8.condenser receiving flask
9.Diffusion pump
10.Vacuum pump
11. Controller panel
12.Pre-heating system for feeding flask
13.heating system for feeding funnel
14.Cooling system for internal condensor

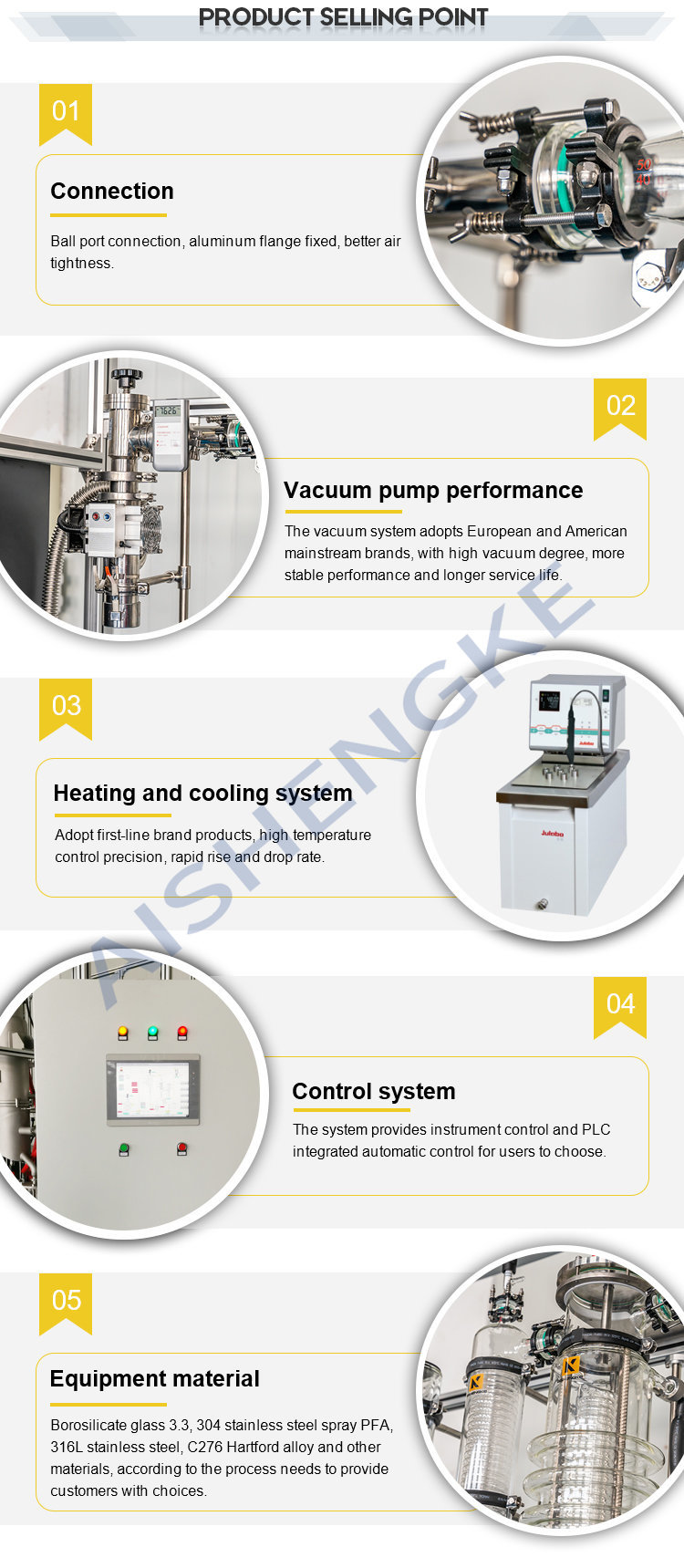

PRODUCT SELLING POINT
1.Connection method
ball port connection, aluminum flange fixed, better airtightness.
2.Vacuum pump performance
the vacuum system adopts european and americanmainstream brands, with high vacuum degree, morestable performance and longer service life.
3.Heating and cooling system
adopt first-line brand products, high temperaturecontrol precision, rapid rise and drop rate.
4.Control system
the system provides instrument control and plcintegrated automatic control for users to choose.
5.Equipment material
borosilicate glass 3.3,304 stainless steel spray pfa,316l stainless steel, c276 hartford alloy and othermaterials, according to the process needs to providecustomers with choices.
Product advantages
1.High vacuum (no leakage in the system)
2.Fast lifting and cooling rate
3.High temperature control accuracy
4.Accurate and adjustable stirring speed
5.High pressure monitoring accuracy
6.Convenient assembly and disassembly
7.Provide process system customized services
8.Fast delivery time
Order Process


Interesting
lnquiry


Inform usage scenarios and technical requirements
Recommended solution


Confirm the details, modify the plan

Customer confirm

Finished product testing, lssue running video and test report

Customer confirm
Production


Pay proofing fee
Recommended solution


Make Sample PI

Packing and shipping
Customer receipt


Guided installation and operation
Satisfied to Sign


Confirm bulk order
Products Can Be Custmized
The volume of the reactor has a wide selection range and can be customized according to customer needs;
The material of the equipment can be customized according to customer requirements, and can provide 304, 316, 316L, titanium alloy, Hastelloy, fluorine lining and other materials for selection.
